What is Bright Lite Structures?

Award-winning BLS Carbon Fibre Solution is a Game Changing Technology

Bright Lite Structures (BLS) is a design and manufacturing company that has developed a patent-pending composite carbon fibre technology.

The BLS solution weighs significantly less than conventional carbon fibre (or aluminium and steel), is capable of make very large 4 meter by 4 meter components, or even larger. It capable of very complex shapes that may not be otherwise possible with conventional carbon fibre or aluminium.

The BLS solution is lower cost than conventional carbon fibre and even aluminium in a number of applications. It is less capital intensive than comparable conventional carbon fibre, aluminium or steel.

The BLS solution has a very short manufacturing cycle, even for very large components. There is no pre-forming required in our process. It is also fast to commercial production and scales easily.

BLS offers a complete solution from design through prototyping to commercial production.

Automotive, Aerospace & other Mass Transit Applications

Typical Transportation Applications

• Floorpans
• Front bulkheads
• Rear bulkheads
• Wheel arches
• Truck floors
• Rails/rockers
• Cantrails
• Aircraft seats
• Aircraft interiors

BLS Compared with Other Commonly Used Materials

Placeholder image

Weighs more than 50% less than steel

More than 35% less than aluminium

More than 20% less than conventional carbon fibre

faster

Production Cycle
for Conventional Carbon
Fibre: 5 - 45 minutes

Production Cycle
for BLS: Can be shortened to under 5 minutes

No pre-forming needed

stronger

Best when load case is stiffness or compression driven

Meets or exceeds
compression,
stiffness and
torsional rigidity
requirements

cheaper

Combines recycled & virgin carbon fibre

Uses less
carbon fibre. No pre-forming needed

Lower tooling costs

faster

RTM or HP RTM require high-pressure presses

BLS low pressure presses enable larger components

stronger

Bends near 90 degrees have been achieved in production

Deeper draws obtainable

Different shapes obtained on each side

Why Use BLS Composite Carbon Fibre?

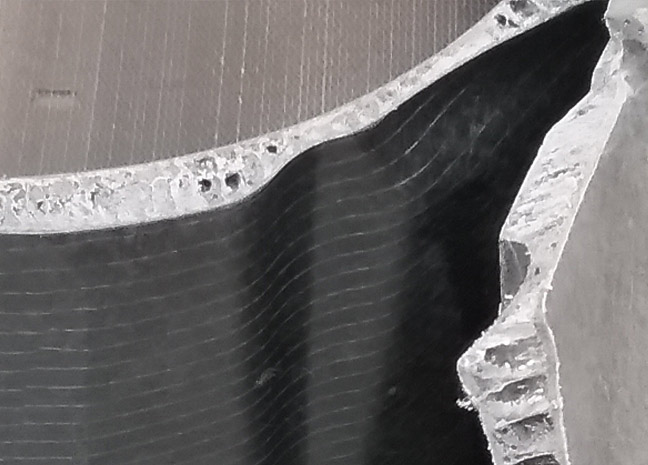

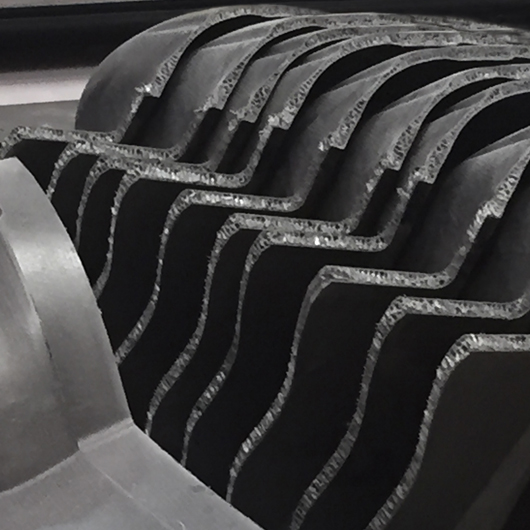

The patent pending BLS carbon fibre solution uses a sandwich construction. A top and bottom fabric layer of recycled and continuous carbon fibre surround a central core of recycled polycarbonate honeycomb. The fabric sides are impregnated with the BLS resin. This flat sandwich panel is wet compression moulded in a hot tool to form a three dimensional component.

The unique structure of the BLS composites means the components can be stiffer, more flexible and lighter-weight than conventional composite fibre or aluminium.

This approach requires less resin and less carbon fibre than conventional composite fibre, which combine to cut total material costs. There is often significantly less material waste in the BLS component production as well.

Lighter-weight, stiffer and more flexible than other composite fibre materials.

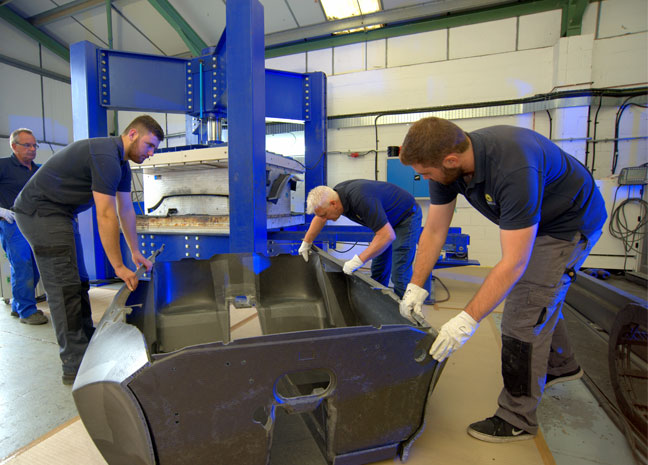

The BLS method creates self-joining components & eliminates the need for jigging or separate fixturing to assemble parts.

assembled zenos chassis
assembled zenos chassis

BLS specially formulated blended resin maintains the performance properties & impact for strength required for vehicle crash.

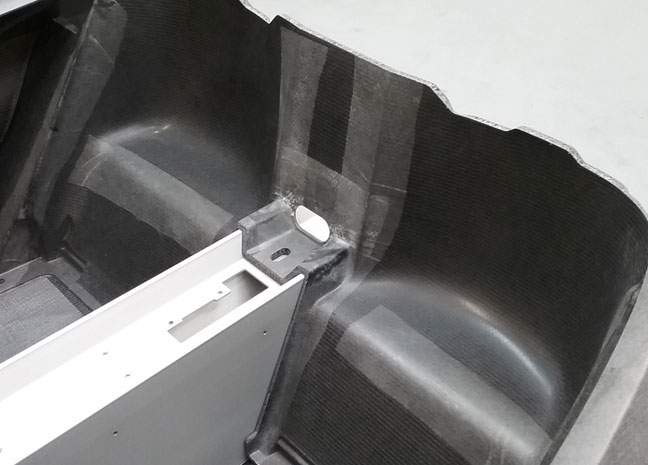

The BLS process is capable of moulding complex, deep-drawn designs very difficult with aluminium or conventional carbon fibre materials.

assembled zenos chassis
assembled zenos chassis

Sandwich construction allows each side to be shaped independently into different configurations or shapes.

BLS low pressure presses can mould larger components. One piece can replace 33 pieces for the equivalent aluminium part that then requires assembly.

assembled zenos chassis

Services & Case Studies

Bright Lite Structures offers a unique combination of design, prototyping and manufacturing services to producers of durable goods and consumer products. We assist our customers in designing components utilising the proprietary BLS technology that will meet their desired performance characteristics. We fabricate prototypes, test to meet demanding industry standards, work out component details, oversee the creation of tooling and manufacture finished components at our production facilities in Peterborough, England.

Design

Placeholder image

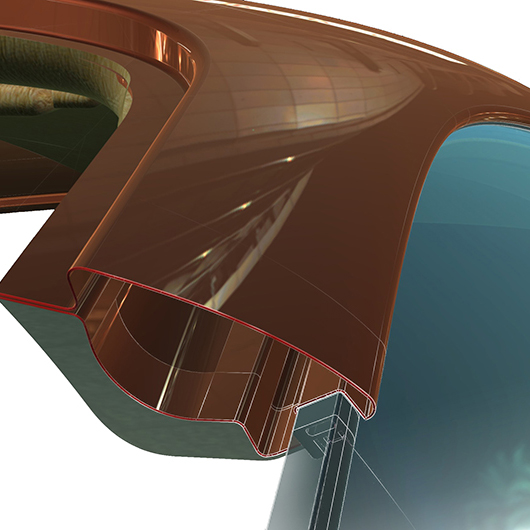

Design components to meet  OEMs exact specifications

Prototyping+Testing

Placeholder image

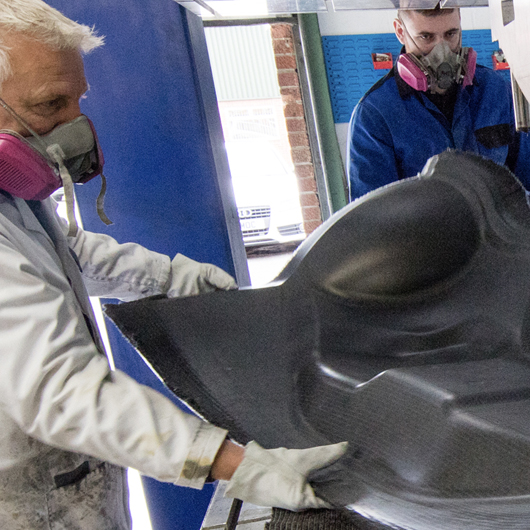

Prototyping to test against industry standards  finalize production details

Tooling

Placeholder image

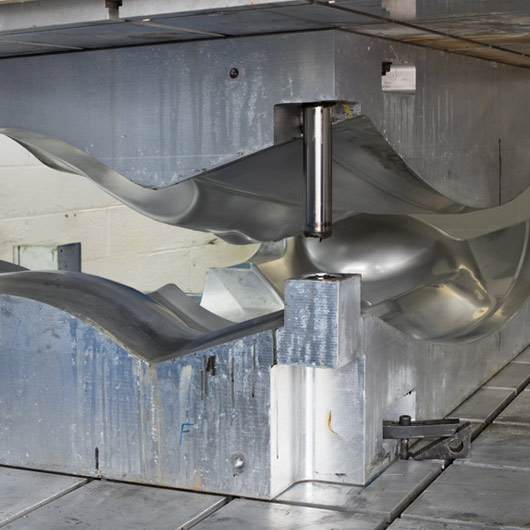

Oversee the creation of tooling needed to exact tolerances

Production

Placeholder image
Volume manufacturing and delivery of the components

The ACRO Story

Placeholder image

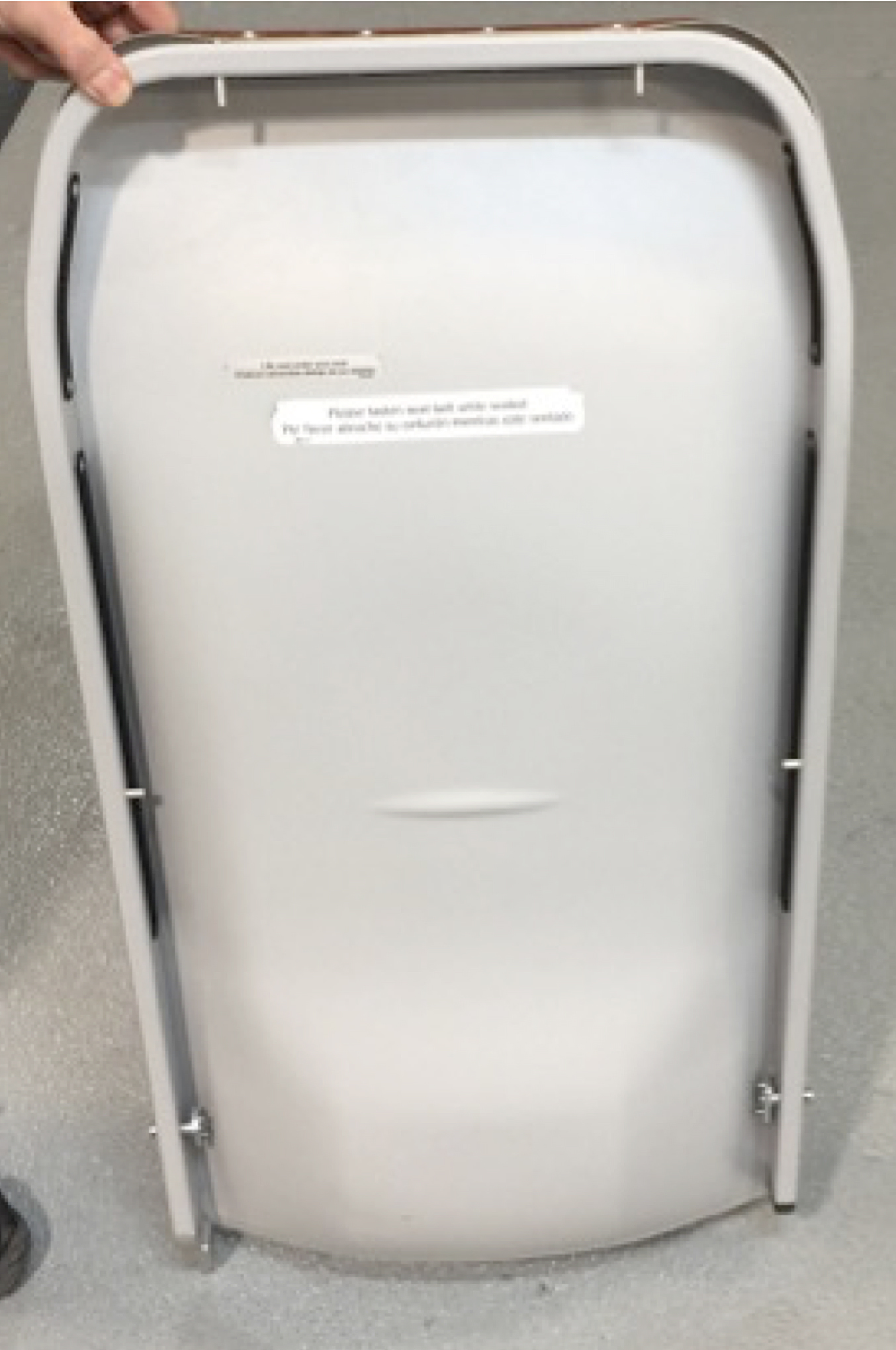

Series 3 seat at 3.3 kg

ACRO Series 6 New Generation


BLS was brought in to do a complete redesign of Acro Aircraft Seating, Ltd series 6 Economy class. Key Innovation is the replacement of the standard aluminium tube-frame seat with a fully composite, but lightweight seatback. BLS developed initial concepts working with the engineers at ACRO. BLS then went on to develop a prototype and work out numerous manufacturing details to meet demanding test requirements for abuse load, crash load, fire and toxicity. With the tests meeting or exceeding FAA and CAA standards, BLS began full scale manufacturing of seat backs for ACRO.

Placeholder image

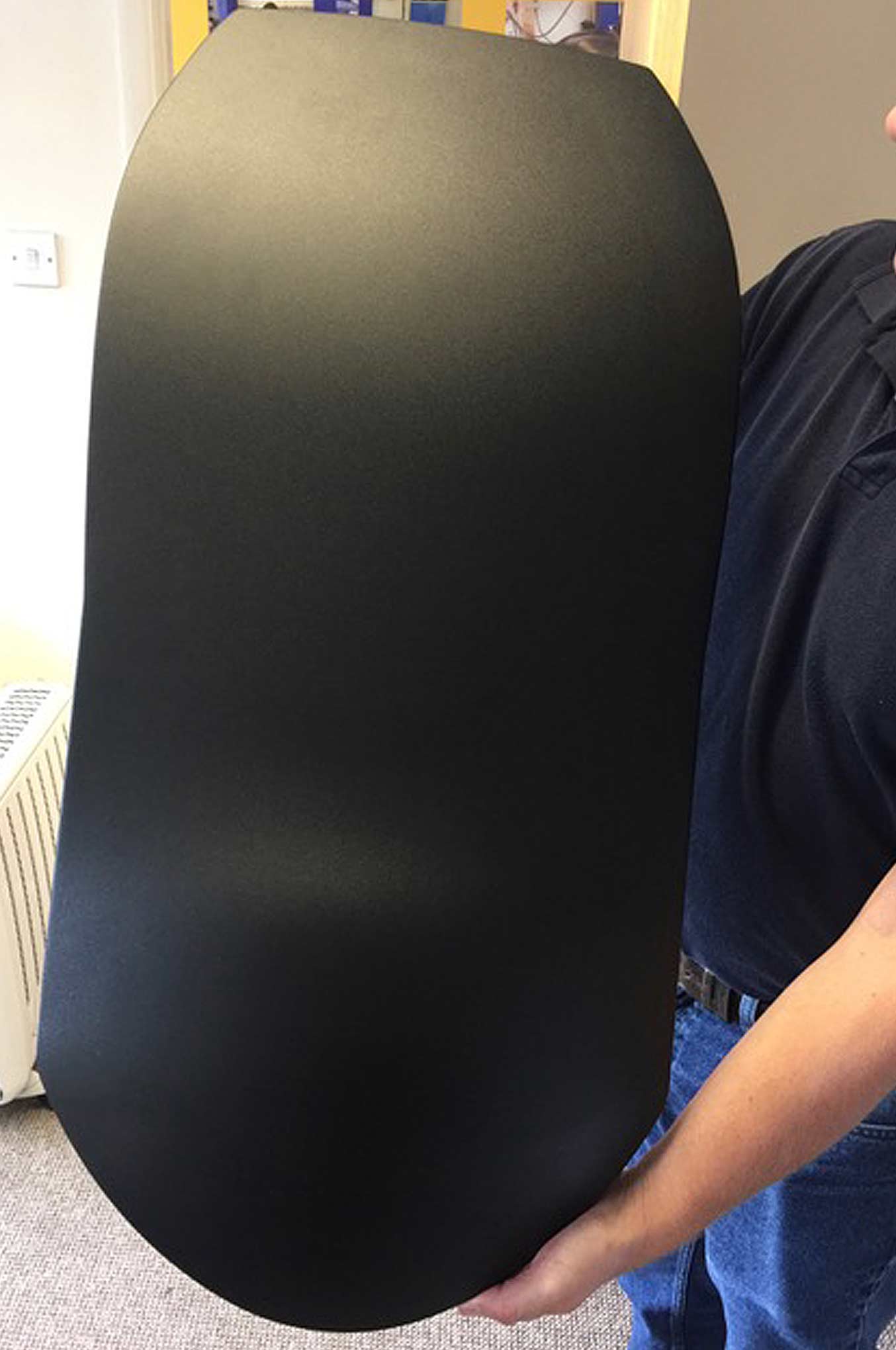

New Series 6 seat at 1.8 kg

Results:
• Lighter Weight
• Smaller Size
• Greater durability
• Easy maintenance

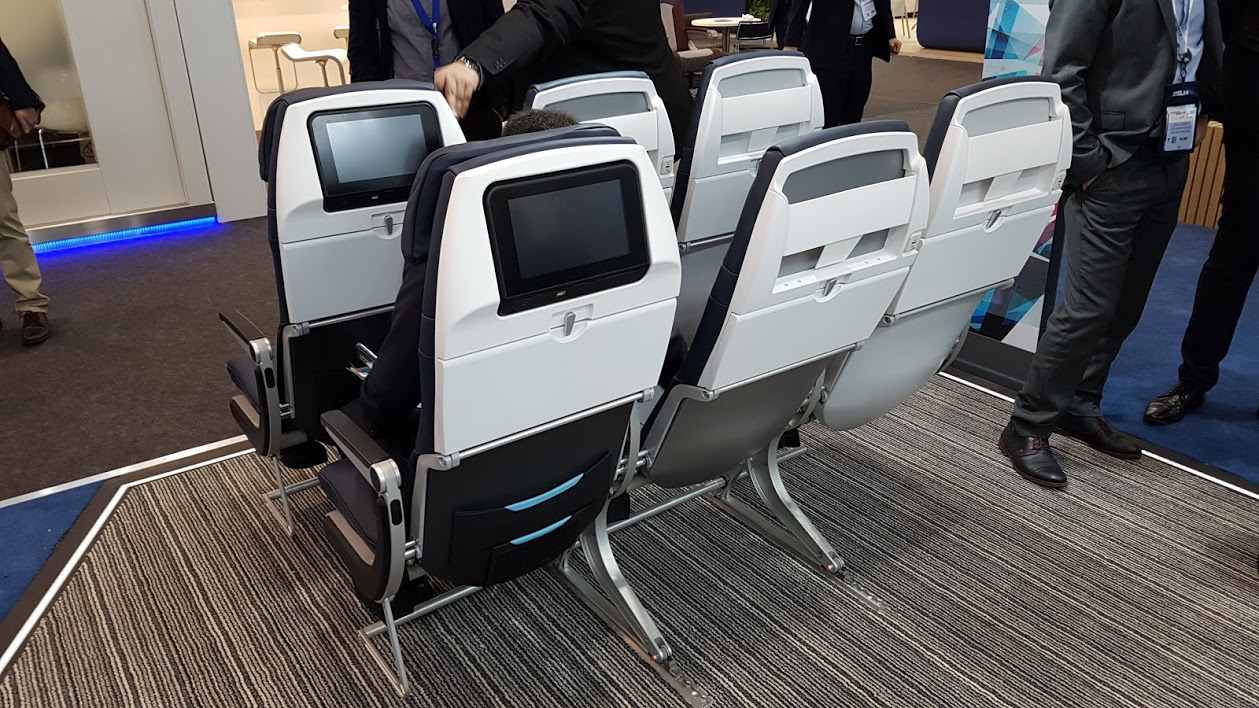

BLS seatbacks shown by ACRO at the Hamburg Airshow in 2018.

Placeholder image

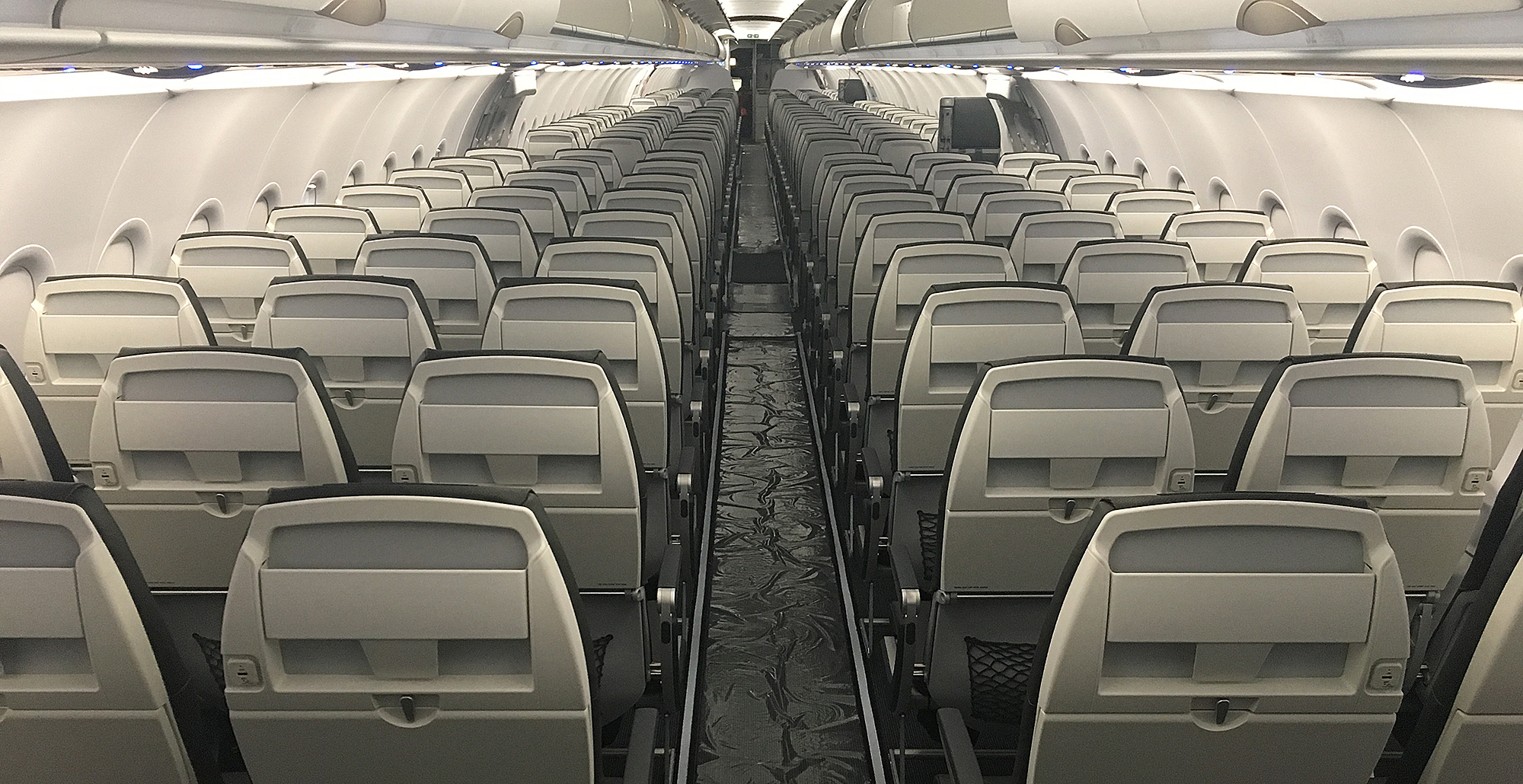

BLS seatbacks installed in an AIRBUS A321 Neo plane.

“We’re trying to design furniture, not equipment as most of our competitors do,” said ACRO CEO Brady.

Placeholder image
Events & Awards

2018
• JEC Aerospace Planet: “Innovative technology for producing ecomony-class aircraft seatbacks”

2017
• UK Government Innovation Seminar for Japanese companies in Tokyo: “Multi-Material Vehicles”

2016
• GoCarbonFibre conference: “A Platform for Lightweight Automotive Composite Design”
• SAMPE Europe Summit: “A Platform for Lightweight Automotive Composite Design”
• ANTEC Indianapolis, Plenary Talk: “A Platform for Lightweight Automotive Composite Design”

2015
• SPE ACCE Conference, BLS, Winner of “Materials Innovation” Trophy
• SPE ACCE 2015 Technical Conference: “A Platform for Lightweight Automotive Composite Design”

2014
• Co-Chair SPE Automotive Composite Conference and Exhibition
• SPE ACCE Panel participant: “Mulit-Material Vehicles”
• GoCarbonFibre: “Reporting on the latest use of recycled fibres in automotive applications”

2013
• GoCarbonFiber: “Mixed material structures – the way forward?”
• Co-Chair of SPE Automotive Composite Conference and Exhibition
• SPE ACCE Co-Chair; Panel moderator: “Design & Assembly of the Multi-Material Car”

2012
• SPE's Automotive Composites Conference & Exhibition: “Project Silver: An Affordable Sports Car”

2011
• SPE's Automotive Composites Conference & Exhibition, keynote address: “Carbon Fibre Preforming Process for Chassis Rails”
• SPE's Automotive Composites Conference & Exhibition, panel: “Measuring the Sustainability Proposition of Composites”

2010
• SPE's Automotive Composites Conference & Exhibition, keynote address: “The Birth of the T35 Sports Car: Embrace the New”
• SPE's Automotive Composites Conference & Exhibition, panel: “Take Structural Composites from Niche to Mainstream”

2006
• SAMPE UK Technical Conference: “Metal with the Dark Side”

Placeholder image

SPE Automotive Composite Conference & Exhibition and Society of Plastics Engineers Most Innovative Composite Part Material Innovation



Gallery

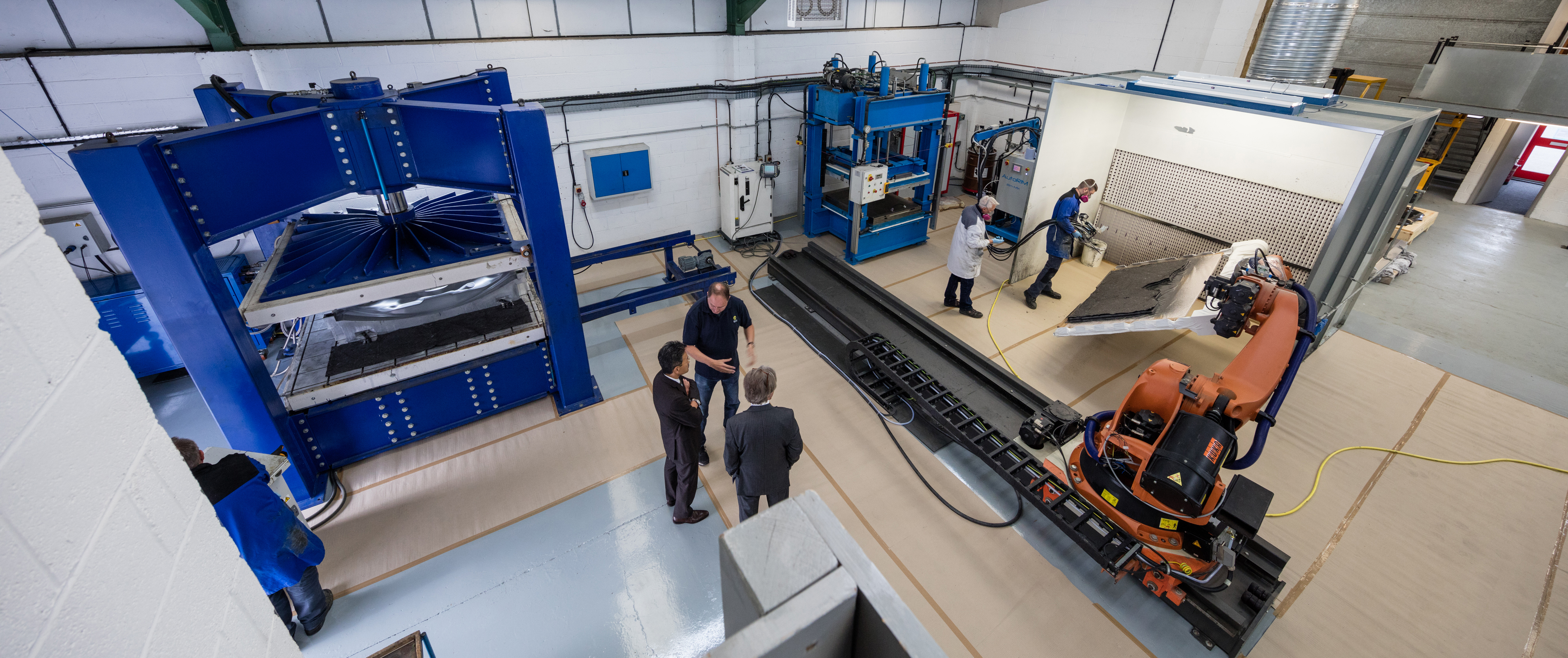

Manufacturing facility

FAQs

BLS is a sandwich carbon fibre solution. The top and bottom layer are a carbon fibre impregnated resin formulation around a polycarbonate core.

How is it different from monolithic carbon fibre?

It is a sandwich structure.

What materials are used in the sandwich?

The BLS solution uses both continuous and recycled carbon fibre as well as a polycarbonate core.
BLS is working with a number of well-known auto OEM's, commercial vehicle and aerospace companies.
Patents covering a broad range of elements of the BLS invention have been filed internationally.
The BLS solution can weigh more than 50% less than steel components; more than 35% less than aluminium and more than 20% less than monolithic carbon fibre.
It is less expensive than conventional carbon fibre and even aluminium in a number of applications. BLS Solution uses less continuous fibre and also uses discontinuous fibre. It is an automated/robotized process with minimal labor required. Tooling is less expensive. Production components have been benchmarked as competitive with aluminium components.
BLS solution is best when the dominate load case is stiffness or compression driven. The BLS solution is not the best solution for tensile applications.
The sandwich core and the continuous carbon fibre absorb the energy from the impact which turns the material into "dust". Although the carbon fibre sheets compare well with the energy absorption of monolithic carbon fibre, the overall joules per gram of the BLS solution is lower due to the weight of the core.
RTM monolithic carbon fibre is limited by the pre-forming and the reasonable draft angle of 2 ½ to 3 degrees off of vertical is achievable. With the BLS solution, because of the use of both continuous and discontinuous fibre and the absence of pre-forming, bends near 90% have been achieved in production components.
In one recent commercial application, it achieved an 87% material utilization.
It has better bending stiffness than monolithic carbon fibre, aluminium or steel because it has an increased "I-section" created by the sandwich.
At the load point, stress will follow the stiffest area. The BLS solution has increased thickness at the corners and this is the stiffest point.
With monolithic carbon fibre, the shape is reflected on both sides of the product; with a sandwich structure, each side can have a different shape. In the same sandwich panel, one can mould both sides of the part which aids in locating fixtures or other components. Or the different shapes can be utilized to accommodate other components.

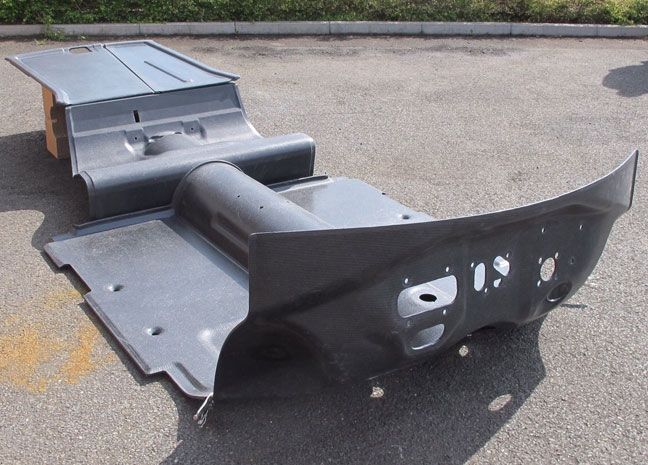

Due to the relatively low pressure required in the process, car floorpans of 2 meters by 3 meters have been produced, and even larger components, such as 4 meter by 4 meter long truck floors, can relatively easily be created. This compares with RTM or HP RTM which need very large clamp pressure requiring very large and expensive presses which may limit part size.
Because BLS solution is not as brittle, deeper draws are possible exceeding that of a typical aluminium structure.
  • • Floorpans
  • • Front bulkheads
  • • Rear bulkheads
  • • Wheel arches: Can use them as springs
  • • Truck floors
  • • Rails/rockers
  • • EV Battery Cases
  • • Cantrails: Can put roof on vehicle later in assembly process.
  • • Aircraft seats
  • • Aircraft interiors
For aerospace applications such as seating, BLS uses resins which meet Fire Smoke and Toxin standards.
BLS solution has been successfully demonstrated in e-coating up to 190 degrees Celsius.
Most BLS applications are structural. However, A class finishes are available.
BLS solution has been extensively tested to identify its characteristics.
The BLS sandwich construction uses less carbon fibre than conventional carbon fibre products. Of the carbon fibre used in the production, more than 50% is recycled material. The polycarbonite materials used to bond the sandwich is comprised of 70% recycled polycarbonate. In addition, our low pressure process uses less energy in manufacturing than conventional carbon fibre, aluminum or steel.
The BLS design joint conditions enable avoiding spot weldable flanges which are used in most metallic structures. The BLS solution uses a tongue and grove which creates very accurate joints and the ability to have small adjustments therefore making the overall structure extremely accurate.
Sound does not directly translate through a sandwich compared with a monolithic structure. The core effectively “traps” sounds and acts as a sound barrier. Depending on the location, this reduces the requirement for sound deadening materials.
The BLS sandwich effectively acts as a thermal barrier. The core creates a thermal insulation. Depending on the location, this reduces the requirement for thermal insulation.
Pigments can be added to create darker colors.
No pre-forming is required reducing total cycle time and cost. The BLS solution always starts with a flat sandwich which is then molded into a complex 3 dimensional shape in a single step.
Current total cycle time (including stacking, no pre-forming is required) is 8-9 minutes. Can be reduced to under 5 minutes.
Because of reduction in parts and fixturing, BLS solution has been benchmarked as having over an 80% BOM reduction compared with conventional aluminium solutions.
BLS can relatively easily produce 100's of thousands of relatively large parts annually. HP RTM or RTM can only make small parts in larger volumes. Pre-preg is a lower volume process.
Depending on the number of components in each tool, it is relatively simple to scale up from 100’s of units to 100’s of thousands of units.
Depending on the complexity of the component, 3-4 months from the approval of the prototype until the beginning of volume production.
It uses low pressure presses which require less capital investment. The tooling costs are relatively low. There is no pre-forming equipment required.
Compared with RTM, steel or aluminium tooling, the BLS tooling is relatively inexpensive.
BLS offers its clients a range of services from the design of components for each product to required specifications, to tooling and prototyping, volume production and delivery of finished components on schedule.
Contact Bright Lite Structures at adodworth@blstructures.com. Usually, a sketch or CAD drawing is all that is required to get started.
The BLS manufacturing facility is located an hour north of London. Supplying components in the US and Europe is relatively simple.
